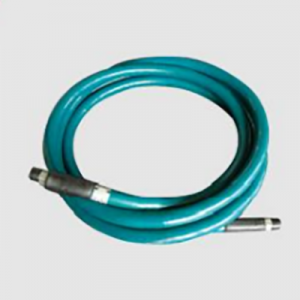

Anti aming Fire-resistance Rubber Hose
Products
Hose Size | Inside Diameter mm | Tolerance mm | Reinforcement Diameter mm | Outside Diameter mm | Tolerance mm | Working Pressure MPa | Proof Pressure MPa | Burst Pressure MPa | Min.Bend Radius mm |
℃ | |
Size | Tolerance | ||||||||||
Φ13(1/2) | 13 | 0.5 |
22.2 |
0.8 |
44 |
1.0 |
43 | 64.5 | 86 | 230 | 750 |
Φ16(5/8 ") | 16 | 0.5 |
26 |
0.8 |
47 |
1.5 |
38 | 57 | 76 | 260 | 750 |
Φ19(3/4 " ) | 19 | 0.5 |
30 |
0.8 |
52 |
1.5 |
34.5 | 51.75 | 69 | 300 | 750 |
Φ25(1 " ) | 25 | 0.8 |
36 |
0.8 |
59 |
1.5 |
27.5 | 41.25 | 55 | 360 | 750 |
Φ32(1-1/4 " ) | 32 | 0.8 |
44 |
0.8 |
69 |
2.0 |
20.5 | 30.75 | 41 | 470 | 750 |
Φ38(1-1/2 " ) | 38 | 1.0 |
50.8 |
1.0 |
76 |
2.0 |
17 | 25.5 | 34 | 570 | 750 |
Φ51(2 " ) | 51 | 1.0 |
63.8 |
1.0 |
91 |
2.0 |
17 | 25.5 | 34 | 740 | 750 |
