PCR

PCR Featured Image
  • PCR

Short Description:

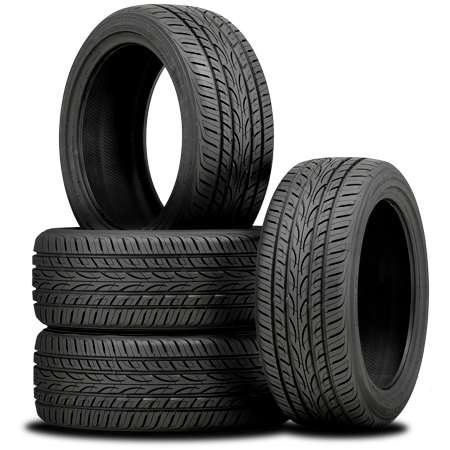

Passenger Car Tyre


Download as PDF

Product Detail

Product Tags

<

SIZE LOAD INDEX SPEED RANGE STANDARD RIM SECTION WIDTH (mm) OVERALL DIAMETER (mm) MAX LOAD KG LBS MAX PRESSURE Kpa Psi
185/55R15 82 H 6J 194 585 475/1047 350/51
195/55R15 85 V 6J 201 595 515/1135 350/51
195/45R16 80 V 61/2J 195 582 450/992 350/51
195/55R16 87 V 6J 201 620 545/1201 350/51
195/60R16 89 H 6J 201 640 580/1279 300/44
205/50R16 87 V 61/2J 214 612 545/1201 350/51
205/40ZR17 84XL W 71/2J 212 596 500/1102 340/50
205/50R17 93XL V 61/2J 214 638 650/1433 340/50
215/40ZR17 87XL W 71/2J 218 604 545/1201 340/50
215/45R17 91XL W 7J 213 626 615/1356 340/50
215/50ZR17 95XL W 7J 226 648 690/1521 340/50
215/55ZR17 94 W 7J 226 668 670/1477 350/51
225/45R17 94XL W 7 1/2J 225 634 670/1477 340/50
225/50R17 98XL V 7J 233 658 750/1653 340/50
225/55ZR17 101XL W 7J 233 680 825/1819 340/50
235/45R17 97XL W 8J 236 644 730/1609 340/50
235/50ZR17 96 W 71/2J 245 668 710/1565 350/51
235/55ZR17 99 W 71/2J 245 690 775/1709 350/51
215/35ZR18 84XL W 71/2J 218 607 500/1102 340/50
225/40R18 92XL w 8J 230 637 630/1389 340/50
225/45ZR18 95XL w 7 1/2J 225 659 690/1521 340/50
235/40ZR18 95XL w 81/2J 241 645 690/1521 340/50
235/45ZR18 98XL w 8J 236 669 750/1653 340/50
245/40ZR18 97XL w 8 1/2J 248 653 730/1609 340/50
245/45ZR18 100XL w 8J 243 677 800/1764 340/50
255/35ZR18 94XL w 9J 260 635 670/1477 340/50
245/35R20 95XL w 8 1/2J 248 680 690/1521 340/50
SIZE LOAD INDEX SPEED RANGE STANDARD RIM SECTION WIDTH (mm) OVERALL DIAMETER (mm) MAX LOAD KG LBS MAX PRESSURE Kpa Psi
155/65R13 73 T 41/2J 157 532 365/805 350/51
155/70R13 75 T 4.50B 157 548 387/853 350/51
155/80R13 79 T 4.50B 157 578 437/963 350/51
165/65R13 77 T 5J 170 544 412/908 350/51
165/70R13 79 T 5.00B 170 562 437/963 350/51
175/70R13 82 T 5.00B 177 576 475/1047 350/51
185/70R13 86 T 5 1/2J 189 590 530/1168 350/51
155/65R14 75 T 41/2J 157 558 387/853 350/51
165/60R14 75 H 5J 170 554 387/853 350/51
165/65R14 79 H 5J 170 570 437/963 300/44
165/70R14 81 T 5J 170 588 462/1018 350/51
175/65R14 82 H 5J 177 584 475/1047 350/51
175/70R14 84 T 5J 177 602 500/1102 350/51
185/60R14 82 H 5 1/2J 189 578 475/1047 350/51
185/65R14 86 H 5 1/2J 189 596 530/1168 350/51
185/70R14 88 T 5 1/2J 189 616 560/1235 350/51
195/60R14 86 H 6J 201 590 530/1168 350/51
195/70R14 91 T 6J 201 630 615/1356 350/51
205/60R14 88 H 6J 209 602 560/1235 300/44
205/70R14 95 H 6J 209 644 690/1521 350/51
215/70R14 96 H 6 1/2J 221 658 710/1565 350/51
175/65R15 84 H 5J 177 609 500/1102 350/51
185/60R15 84 H 5 1/2J 189 603 500/1102 350/51
185/65R15 88 H 5 1/2J 189 621 560/1235 350/51
195/50R15 82 V 6J 201 577 475/1047 350/51
195/55R15 85 V 6J 201 595 515/1135 350/51
195/60R15 88 H 6J 201 615 560/1235 350/51
195/65R15 91 H 6J 201 635 615/1356 350/51
205/60R15 91 H 6J 209 627 615/1356 350/51
205/65R15 94 H 6J 209 647 670/1477 350/51
205/70R15 96 T 6J 209 669 710/1565 350/51
215/70R15 98 T 6 1/2J 221 683 750/1653 350/51
225/70R15 100 H 6 1/2J 228 697 800/1764 300/44
205/45R16 83 H 7J 206 590 487/1073 350/51
205/55R16 91 V 6 1/2J 214 632 615/1356 350/51
205/60R16 92 H 6J 209 652 630/1389 350/51
215/55R16 93 V 7J 226 642 650/1433 350/51
215/60R16 95 H 61/2J 221 664 690/1521 350/51
225/50R16 92 V 7J 233 632 630/1389 350/51
225/55R16 95 V 7J 233 654 690/1521 350/51
225/60R16 98 H 61/2J 228 676 750/1653 350/51
SIZE LOAD INDEX SPEED RANGE STANDARD RIM SECTION WIDTH (mm) OVERALL DIAMETER (mm) MAX LOAD KG LBS MAX PRESSURE Kpa Psi
235/75R15 105 S 6 1/2J 235 733 925/2039 300/44
215/65R16 102XL H 6 1/2J 221 686 850/1874 340/50
215/70R16 100 T 6 1/2J 221 708 800/1764 300/44
225/70R16 103 T 6 1/2J 228 722 875/1929 300/44
235/60R16 100 H 7J 240 688 800/1764 300/44
255/70R16 111 H 7 1/2J 260 764 1090/2403 300/44
215/60R17 96 H 6 1/2J 221 690 710/1565 300/44
225/60R17 99 V 6 1/2J 228 702 775/1709 300/44
225/65R17 102 V 6 1/2J 228 724 850/1874 300/44
235/65R17 108XL H 7J 240 738 1000/2205 340/50
245/65R17 107 H 7J 248 750 975/2149 300/44
265/65R17 112 H 8J 272 776 1120/2469 300/44
265/70R17 115 S 8J 272 804 1215/2679 300/44
215/55R18 95 V 7J 226 693 690/1521 300/44
235/55R18 100 V 7 1/2J 245 715 800/1764 300/44
235/65R18 106 H 7J 240 763 950/2094 300/44
265/70R18 116 S 8J 272 829 1250/2756 300/44
225/55R19 99 V 7J 233 731 775/1709 300/44
235/55R19 105XL V 7 1/2J 245 741 925/2039 340/50
245/55ZR19 103 W 7 1/2J 253 753 875/1929 300/44
SIZE LOAD INDEX SPEED RANGE STANDARD RIM SECTION WIDTH (mm) OVERALL DIAMETER (mm) MAX LOAD KG LBS MAX PRESSURE Kpa Psi
175/70R14 84 T 5J 177 602 500/1102 300/44
185/60R14 82 H 5.5J 189 578 475/1047 300/44
185/65R15 88 H 5.5J 189 621 560/1235 300/44
195/60R14 86 H 6J 201 590 530/1168 300/44
205/65R15 94 H 6J 209 647 670/1477 300/44
SIZE LOAD INDEX SPEED RANGE STANDARD RIM SECTION WIDTH (mm) OVERALL DIAMETER (mm) MAX LOAD KG LBS MAX PRESSURE Kpa Psi
285/50R20 116XL V 9J 297 794 1250/2756 340/50
SIZE LOAD INDEX SPEED RANGE STANDARD RIM SECTION WIDTH (mm) OVERALL DIAMETER (mm) MAX LOAD KG LBS MAX PRESSURE Kpa Psi
155/65R13 73 T 41/2J 157 532 365/805 350/51
165/70R13 79 T 5.00B 170 562 437/963 350/51
175/70R13 82 T 5.00B 177 576 475/1047 350/51
175/65R14 82 T 5J 177 584 475/1047 350/51
175/70R14 84 T 5J 177 602 500/1102 300/44
185/60R14 82 T 51/2J 189 578 475/1047 350/51
185/65R14 86 T 51/2J 189 596 530/1168 350/51
185/70R14 88 T 51/2J 189 616 560/1235 300/44
185/60R15 84 T 5 1/2J 189 603 500/1102 350/51
195/60R15 88 T 6J 201 615 560/1235 350/51
185/65R15 88 T 51/2J 189 621 560/1235 300/44
195/55R15 85 T 6J 201 595 515/1135 300/44
195/65R15 91 T 6J 201 635 615/1356 350/51
205/65R15 94 T 6J 209 647 670/1477 350/51
205/55R16 91 H 61/2J 214 632 615/1356 350/51
205/60R16 92 T 6J 209 652 630/1389 350/51
215/60R16 95 T 61/2J 221 664 690/1521 350/51
225/60R16 98 T 61/2J 228 676 750/1653 350/51
205/50R17 89 H 61/2J 214 638 580/1279 350/51
225/45R17 91 H 7 1/2J 225 634 615/1356 350/51
215/55R17 94 T 7J 226 668 670/1477 300/44
225/55R17 97 T 7J 233 680 730/1609 300/44
215/60R17 96 T 6 1/2J 221 690 710/1565 300/44
225/60R17 99 T 6 1/2J 228 702 775/1709 300/44
225/65R17 102 T 6 1/2J 228 724 850/1874 300/44
215/55R18 95 T 7J 226 693 690/1521 300/44
225/60R18 100 T 6 1/2J 228 727 800/1764 300/44
245/55R19 103 T 7 1/2J 253 753 875/1929 300/44
SIZE LOAD INDEX SPEED RANGE STANDARD RIM SECTION WIDTH (mm) OVERALL DIAMETER (mm) MAX LOAD SINGLE KG LBS nMAXLOAD DUAL KG LBS” MAX PRESSURE Kpa Psi
155R13C 90/88 Q 4.50B 157 578 600/1323 560/1235 450/65
165R13C 94/93 R 4.50B 165 594 670/1477 650/1433 450/65
175R13C 97/95 R 5.00B 177 610 730/1609 690/1521 450/65
185R14C 102/100 Q 5 1/2J 189 652 850/1875 800/1765 450/65
195R14C 106/104 Q 5 1/2J 196 668 950/2095 900/1985 450/65
185R15C 103/102 Q 5 1/2J 189 677 875/1930 850/1875 450/65
195/70R15C 104/102 Q 6J 201 655 900/1984 850/1874 450/65
195R15C 106/104 R 5 1/2J 196 693 950/2094 900/1984 450/65
175R16C 101/99 Q 5J 178 684 825/1819 775/1709 450/65
185/75R16C 104/102 s 5J 184 684 900/1985 850/1875 475/70
SIZE LOAD INDEX SPEED RANGE STANDARD RIM SECTION WIDTH (mm) OVERALL DIAMETER (mm) MAX LOAD SINGLE KG LBS ”MAX LOAD DUAL KG LBS" MAX PRESSURE Kpa Psi
175/70R14C 95/93 S 5J 177 602 690/1521 650/1433 375/54
225/65R16C 112/110 T 6 1/2J 228 698 1120/2469 1060/2337 475/69
235/65R16C 115/113 R 7J 240 712 1215/2679 1150/2535 475/69
SIZE LOAD INDEX SPEED RANGE STANDARD RIM SECTION WIDTH (mm) OVERALL DIAMETER (mm) MAX LOAD SINGLE KG LBS "MAX LOAD DUAL KG LBS” MAX PRESSURE Kpa Psi
215/75R15 100 S 6J 216 703 800/1764 -/- 350/50
225/70R15C 112/110 R 6 1/2J 228 697 1120/2470 1060/2335 450/65
225/75R15 106XL S 6J 223 719 950/2094 -/- 340/50
LT235/75R15 110/107 S 6 1/2J 235 733 1060/2335 975/2150 450/65
205/80R16 104XL T 5 1/2J 203 734 900/1984 -/- 340/50
235/65R16C 115/113 R 7J 240 712 1215/2679 1150/2535 475/69
235/70R16 106 T 7J 240 736 950/2094 -/- 350/51
LT245/75R16 120/116 Q 7J 248 774 1380/3042 1260/2778 550/80
245/70R16 111XL T 7J 248 750 1090/2403 -/- 340/50
265/70R16 112 T 8J 272 778 1120/2469 -/- 350/51
225/60R17 99 H 6 1/2J 228 702 775/1709 -/- 350/51
225/65R17 102 H 6 1/2J 228 724 850/1874 -/- 350/51
235/60R18 107XL H 7J 240 739 975/2149 -/- 340/50
